Adhesive Butyl Rubber: Sealant Tapes SP
【Composite seal material for civil engineering】
Product PDF Download

・Reliable products
Produced through integrated factory production from kneading to extrusion and subject to strict process management and standard inspection, the products may be used without concern.

・Superior weather resistance
Made of specialty synthetic rubber sponge with high weather resistance, they retain elasticity between -30 °C and 120 °C.
With excellent weather resistance, the adhesiveness of butyl rubber is stable in cold regions as well as areas with severe heat during the summer.

・Complete water sealing capability
The adhesiveness of butyl rubber and the resilience of sponge rubber make them very compatible with water sealing surfaces and follow expansion, contraction and other behaviors to completely block water.

・Easy to install
They are tape-shaped fixed form sealants. They are so easy to install that anyone can do it.


Applications

Sealants for the joints of box culverts and canals (U-shaped gutters) for agriculture and other applications

Types and Shapes.

Model Shapes and Dimensions Model Shapes and Dimensions
Type SP-I A Type SP-III
Type SP-I B Type SP-IV
Type SP-II Type SP-VII
Type SP-II A Type SP-IX
Type SP-II C Type SP-ø

Outside：Butyl rubber(black)　／　Inside：Rubber sponge(gray)

基本物性

●Butyl rubber-based composite sealant for civil engineering: Physical properties of rubber sponge

Test item Unit SP-Ⅱ,ⅡC SP-Ⅲ,ø Test method
Specific gravity - 0.22
 0.45
 JIS K 6268
Hardness - 19 30 JIS K 6253
Tensile strength MPa 0.92 1.84 JIS K 6251
Elongation % 260 250 JIS K 6251
Ozone resistance - Appearance not changed JIS K 6259

●Butyl rubber-based composite sealant for civil engineering: Physical properties of butyl rubber

Test item Unit Measurement example Test method
Specific gravity - 1.45 JIS K 6268
Tensile strength MPa 0.18 JIS K 6251
Elongation % 1900 JIS K 6251
Bonding strength MPa 0.20 JIS K 6251
Penetration - 60 JIS K 2207
Ozone resistance - Appearance not changed JIS K 6259

Watertight resistance test results

●Test method

Test samples from Sealant Tape SP Types SP-II, SP-II C, SP-III and SP-IV are placed in watertight resistance test equipment as illustrated. The test observed if water leaked within the three-minute retention time at different water pressures.For testing tape to the ring shape another thin butyl tape was used to fix both ends.

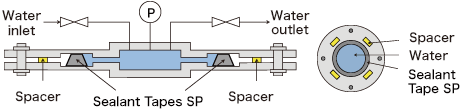

●Test equipment

Compression rate Water pressure
（MPa）		 Water leak
Type SP-II Type SP-II C Type SP-III Type SP-IV
Compression rate: 25% 0.05 Not observed Not observed Not observed Not observed
0.10 Not observed Not observed Not observed Not observed
0.15 Not observed Observed Not observed Not observed
0.20 Observed - Not observed Observed
0.30 - - Not observed -
Compression rate: 50％ 0.05 Not observed Not observed Not observed Not observed
0.10 Not observed Not observed Not observed Not observed
0.15 Not observed Not observed Not observed Not observed
0.20 Not observed Not observed Not observed Not observed
0.30 Not observed Not observed Not observed Not observed
