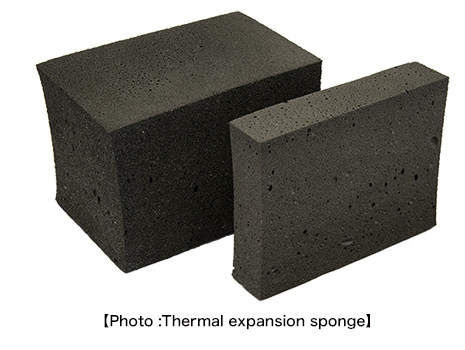

Thermal expansion sponge products
Product PDF Download

・Excellent fire resistance
At a temperature of 200 °C or higher, thermal expansion starts to create a solid heat insulation layer. The expansion material fills the space to block smoke.

・Easy-to-handle shapes
The material is provided in sponge tapes or in sponge blocks. They are soft and easy to process.

・Halogen-free
Halogen-free compounds emit a very small amount of toxic gas.

・Sound and vibration insulation
In addition to fire resistance, it also has sound and vibration insulation capabilities enabling it to be used as a housing material.

・Workability
It can be easily applied on ceilings and walls using double-sided adhesive paper or butyl sheet tape.

Types and Shapes

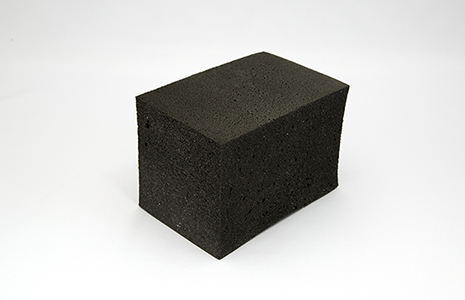

●Block

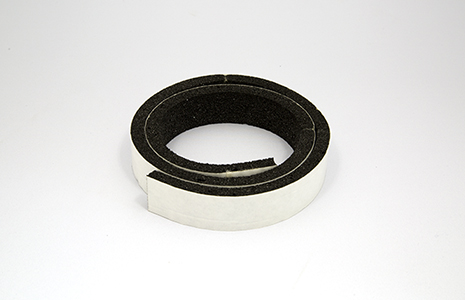

●Tape

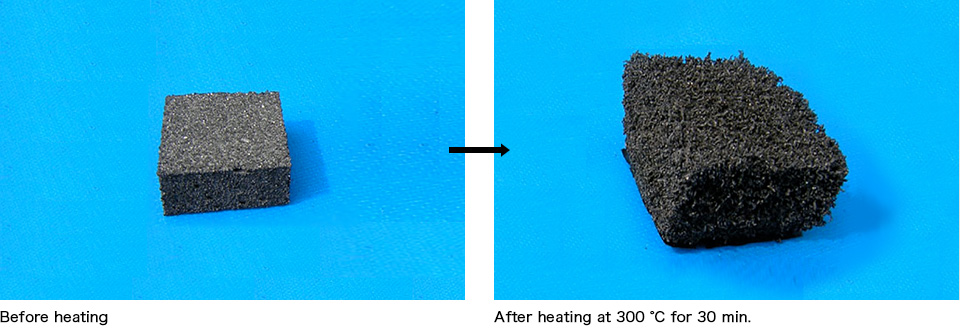

Thermal expansion of sponge product

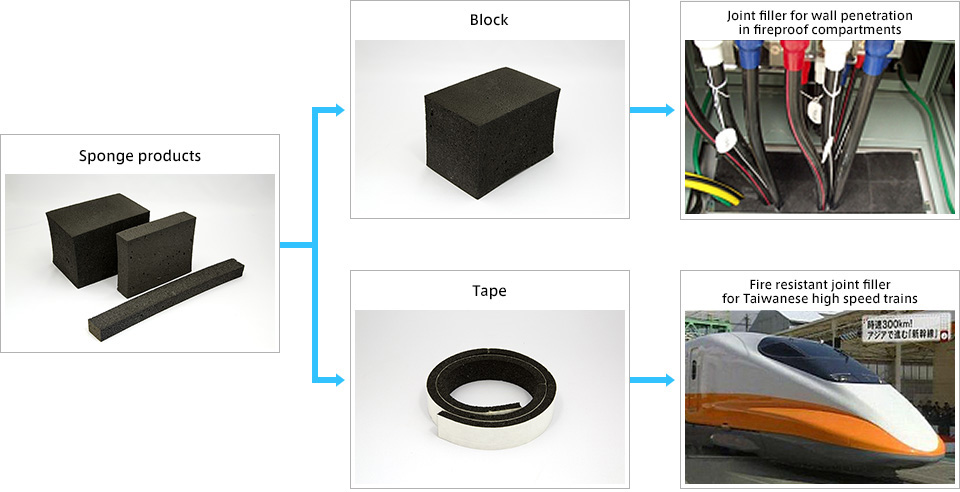

Application examples: Sponge products

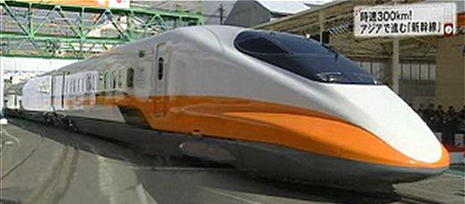

Adopted by Taiwan High Speed Rail for its 700T

● Adopted by Taiwan High Speed Rail for its 700T

Number of train cars built: 30 trains with 12 cars per train for a total of 360 cars
Manufacturers: Kawasaki Heavy Industries, Nippon Sharyo, and Hitachi

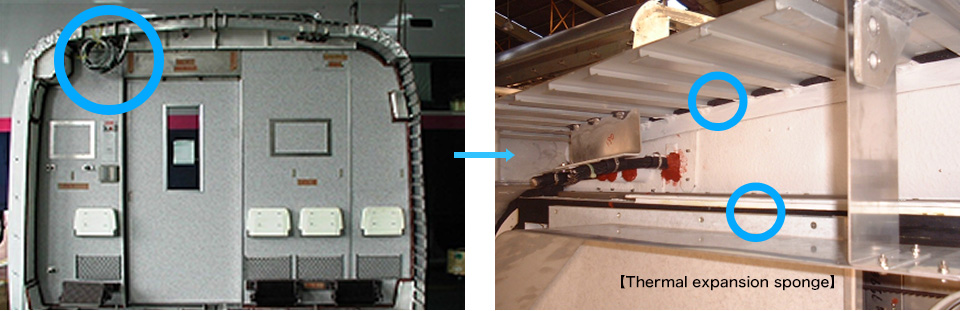

Thermal expansion sponge has been used in car bodies (to prevent the spread of fire) and door gaps (to block smoke)

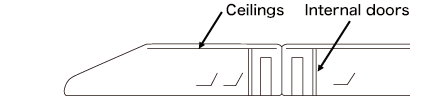

●Thermal expansion sponge is incorporated in:

● Fire retardant on Taiwanese high speed trains
